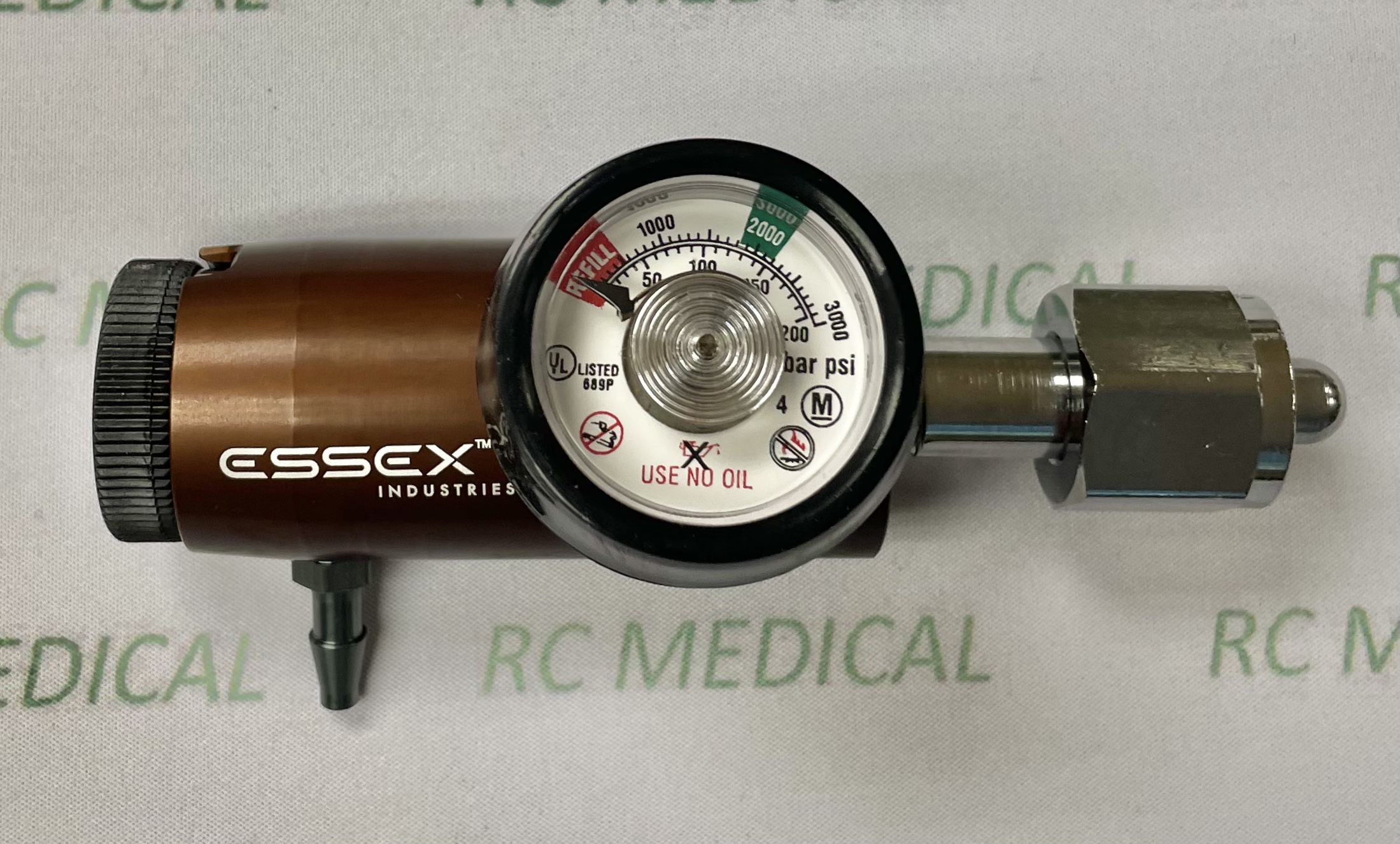

HeliOx Regulator, 0-20 LPM, Large Cylinder, CGA280 Yoke, 80/20 Ratio
HeliOx Regulator, 0-20 LPM, Large Cylinder, CGA280 Yoke, 80/20 Ratio, Nut/Nipple
Heliox regulators are constructed of anodized aluminum bodies with all brass high
pressure conduits. These units are available for various helium/oxygen blend ratios and
tank connections. Heliox regulators are made in the US and are fully serviceable
for extended life. The flow rate and settings for all heliox regulators are as follows:
FLOW RANGE FLOW SETTINGS
0 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 8.0 | 10.0 | 12.0 | 15.0 | 18.0 | 20.0
0-20 L/min
• Brown anodized aluminum body for lightweight design
• Easy to read 1 ½ “ gauge protected with durable cover
• Single-piece body construction provides a robust, long-lasting regulator
• Flame arrestor manufactured with sintered bronze filter
• Click style regulator ensures precise selection of flow rate
• Meets ASTM G175-03 standards for promoted ignition & adiabatic compression
• Fully serviceable regulator
• Conforms to CE standards
